| Model Number | FUYUANTONG UL1431 | ||||
|---|---|---|---|---|---|
| Brand Name | FUYUANTONG | ||||
| origin | China | ||||
| Small Orders | Accepted | ||||
Key Specifications/ Special Features:

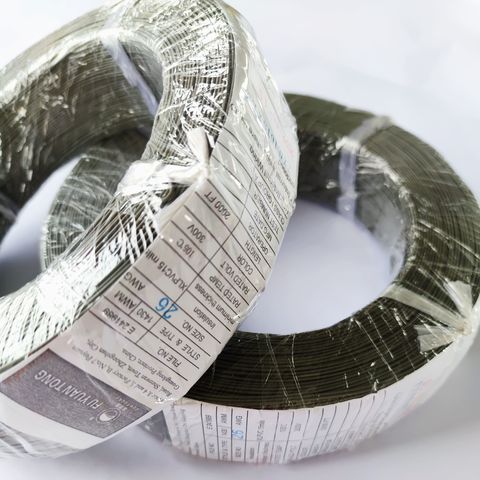

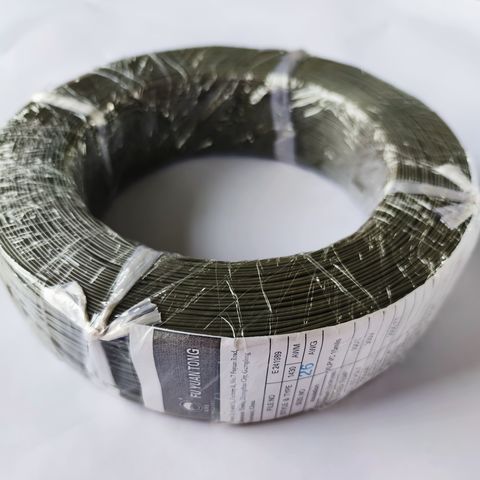

UL1431 XLPVC Single-Core Hook-up Wires
Rated temperature:105℃
Rated voltage:600V

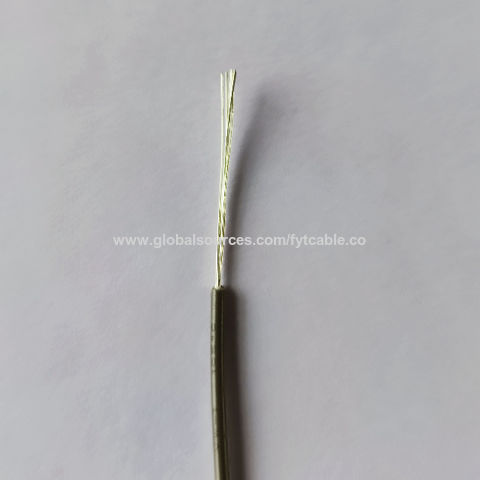

Conductor material: Single or stranded tinned copper wire or bare copper
Insulation material: XL-PVC
Production Standard: UL758 UL1581 2556 CSA C22.2 No.210
Passed test: UL VW-1 and CSA FT1 vertical flame resistance test
Characteristics: It has the features of acid resistance, oil resistance, moisture resistance, and mildew resistance
Scope of application: Internal connecting wires of general electronic and electrical equipment
| wire Gauge
AWG |
Number/ wire diameter
(No/mm) |
Insulation Thickness
(mm) |
Wire Outer Diameter
(mm) |
Maximum Resistance
(Ω/km) 20°C |
Normal Packing
(m) |
| 12 | 65*0.254 | 0.762 | 4.0±0.1 | 5.43 | 305 |
| 14 | 41*0.254 | 0.762 | 3.5±0.1 | 8.62 | 305 |
| 16 | 26*0.254 | 0.762 | 3.1±0.1 | 13.7 | 610 |
| 18 | 41*0.16 | 0.762 | 2.8±0.1 | 21.80 | 610 |
| 20 | 26*0.16 | 0.762 | 2.55±0.1 | 34.60 | 610 |
| 22 | 17*0.16 | 0.762 | 2.4±0.1 | 55.00 | 610 |
| 24 | 11*0.16 | 0.762 | 2.25±0.1 | 93.25 | 610 |
| 26 | 7*0.16 | 0.762 | 2.1±0.1 | 148.94 | 610 |
| 28 | 7*0.127 | 0.762 | 2.0±0.1 | 237.25 | 610 |
| 30 | 7*0.10 | 0.762 | 1.9±0.1 | 376.96 | 610 |
Product Certifications
| Certificate Standard | UL | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the picture to see a larger one
|
||||
| Certificate Number | E241989 | ||||
| Issue Date | 2012/03/12 | ||||
| Issued By | UL Product iQ | ||||
| Expiry Date | 2032/03/12 | ||||
Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.
Shipping Information
| FOB Port | Zhongshan | ||||
|---|---|---|---|---|---|
| Weight per Unit | 30.0 Kilograms | ||||
| HTS Code | 8544.49.29 00 | ||||
| Export Carton Dimensions L/W/H | 1.1 x 1.1 x 0.9 Meters | ||||
| Lead Time | 25–35 days | ||||
|---|---|---|---|---|---|
| Dimensions per Unit | 40.0 x 40.0 x 20.0 Centimeters | ||||
| Units per Export Carton | 610.0 | ||||
| Export Carton Weight | 300 Kilograms | ||||
Main Export Markets
– Asia
– Australasia
– Central/South America
– North America
